Development Board Versions
Specifications
| Model |
Luckfox Lyra Ultra |
Luckfox Lyra Ultra W |
| Processor |
Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0 |
| Memory |
512MB DDR3L |
| USB |
USB OTG2.0 × 2 |
Original USB OTG2.0 × 1,
Extended USB HOST2.0 × 2 via HUB |
| Display |
MIPI DSI 2-lane |
| GPIO |
29 × Rockchip Matrix IO pins + 4 × GPIO pins |
| Ethernet port |
10/100M Ethernet port |
| Default Storage |
8GB eMMC |
| Wireless |
- |
Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE |
LCD Kit connection example
Highly integrated and powerful performance
- Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
- Supports DDR2 / DDR3 / DDR3L memory interface expansion, meeting various expansion needs
- The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
- Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Easier to develop
Integrates DSI interface, USB-A port, Ethernet port, and speaker header, etc.
WiFi 6 and Bluetooth module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission
Reserved PoE Module Header
More Flexible for Power Supply
* the PoE module is optional, and the switch in the picture above is NOT included.
MIPI DSI 2-lane interface
Compact size, powerful performance, easy to drive large screens
* Supports up to 1280 × 800 @ 60Hz resolution.
Rockchip Matrix IO design
The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration
Pin definition

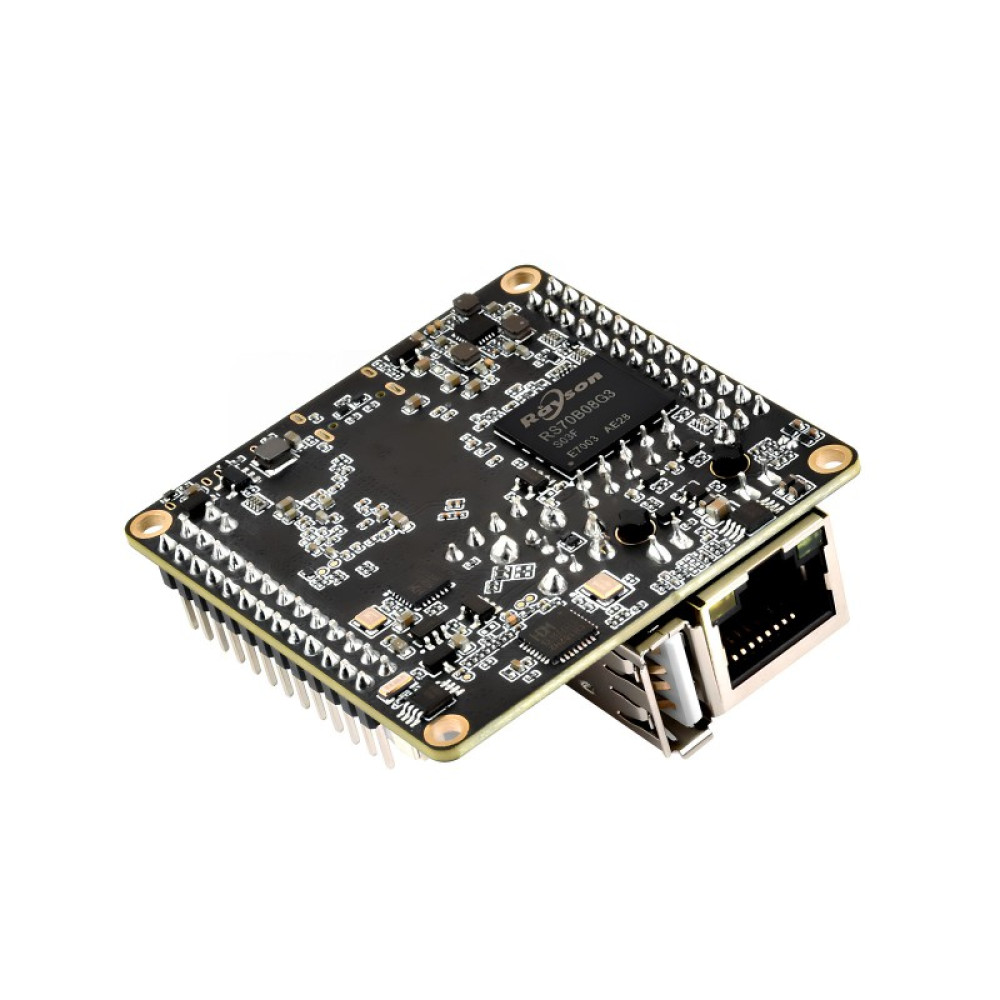

What's On Board
1. Type-C connector
for power supply and program burning
2. USER-LED
for indicating system operation status in the default image, programmable indicator
3. BOOT button
Press it when powering on or resetting to enter download mode
4. RESET button
5. GPIO header
6. RTC battery connector
7. Antenna connector
8. WIFI/Bluetooth module
2.4G WiFi 6; BT5.2/BLE Bluetooth module
9. USB-A port
10. RJ45 100M Ethernet port
11. Speaker header
MX1.25 2P connector, supports 8Ω 1W speaker
12. MX1.25 4P USB header
Supports conversion to USB-A interface (only available on the board version with Wi-Fi module)
13. DSI display interface
MIPI CSI 2-lane
14. 512MB DDR3L
15. RK3506B
Multi-core heterogeneous SoC with tri-core ARM Cortex-A7 + ARM Cortex-M0
16. PoE module / external power supply header
for connecting external 5V power supply or PoE module power supply
17. PoE module header
18. CH334F
USB HUB chip
19. CH182H2
100 Mbps Ethernet PHY chip
20. 8GB EMMC
outline dimensions
