Микрокомпьютер ESP32-C6 160MHz, 1.47inch Display (172×320, 262K Color), WiFi 6 & Bluetooth

80,00 руб.

Оформить

Код товара: ESP32-C6-1.47

ESP32-C6-LCD-1.47

Integrates LCD display, onboard TF card slot and multiple peripheral interfaces

* for reference only, please refer to the actual display effect

version options

ESP32-C6-LCD-1.47
Standard version

ESP32-C6-LCD-1.47-M
With pre-soldered header (black)

Features

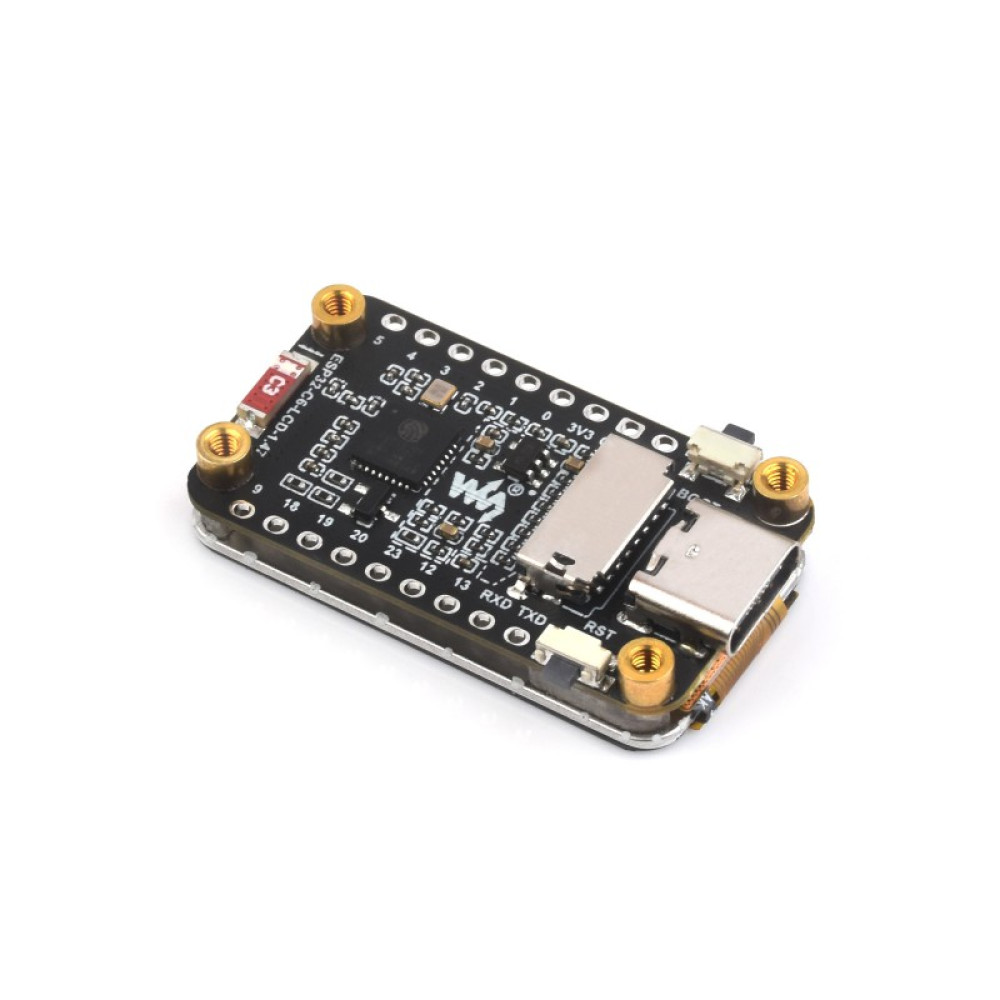

ESP32-C6-LCD-1.47 is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications.

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory

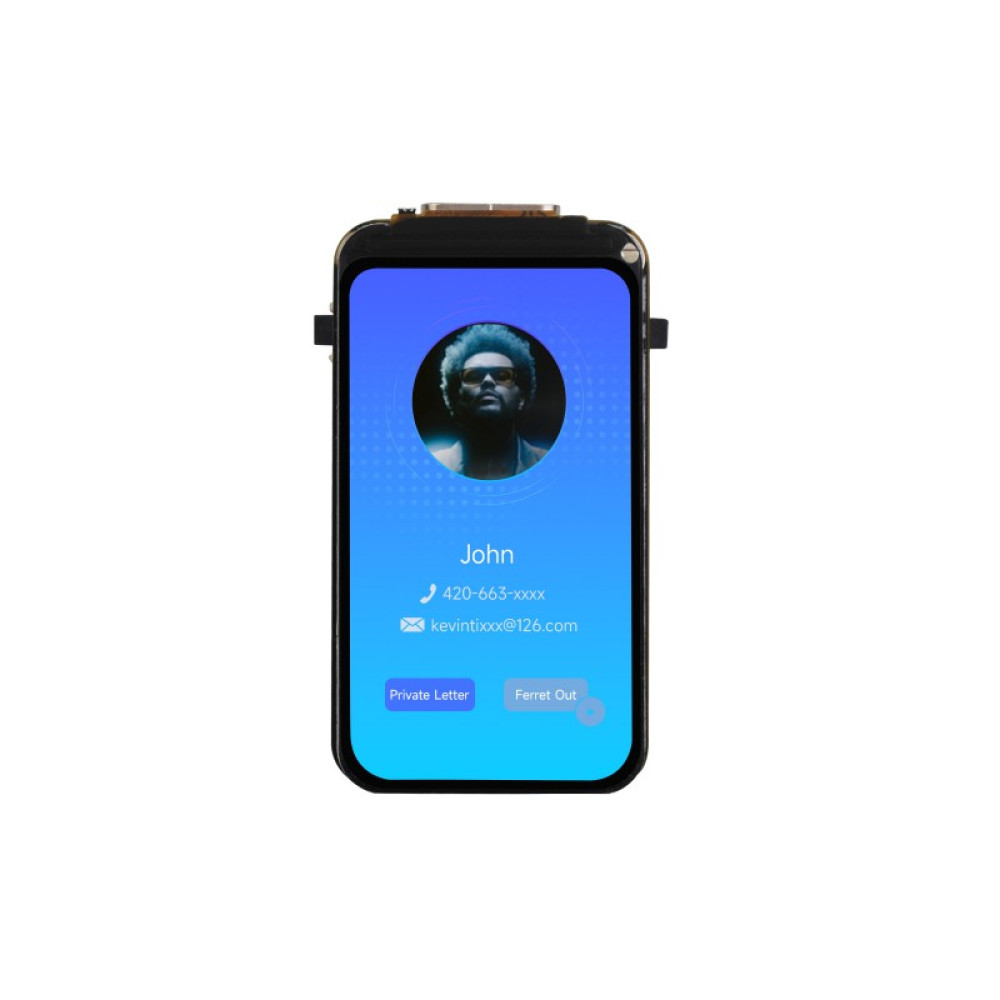

Onboard 1.47inch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, integrates full-speed USB port
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect

ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

ESP32-C6 with high-performance 32-bit RISC-V processor

WIFI 6 and BLE 5 support

ESP32-C6 integrates 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
