Экран 0.71" Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors
Features at a glance

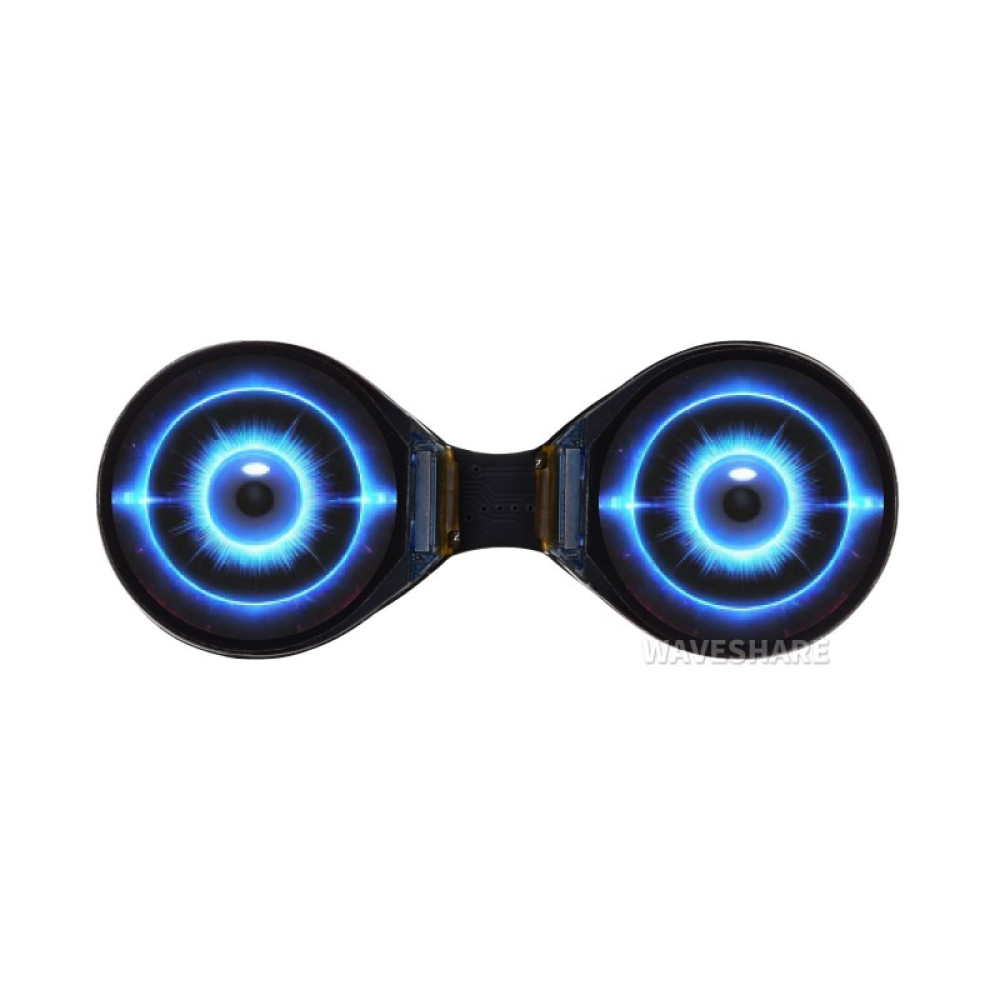

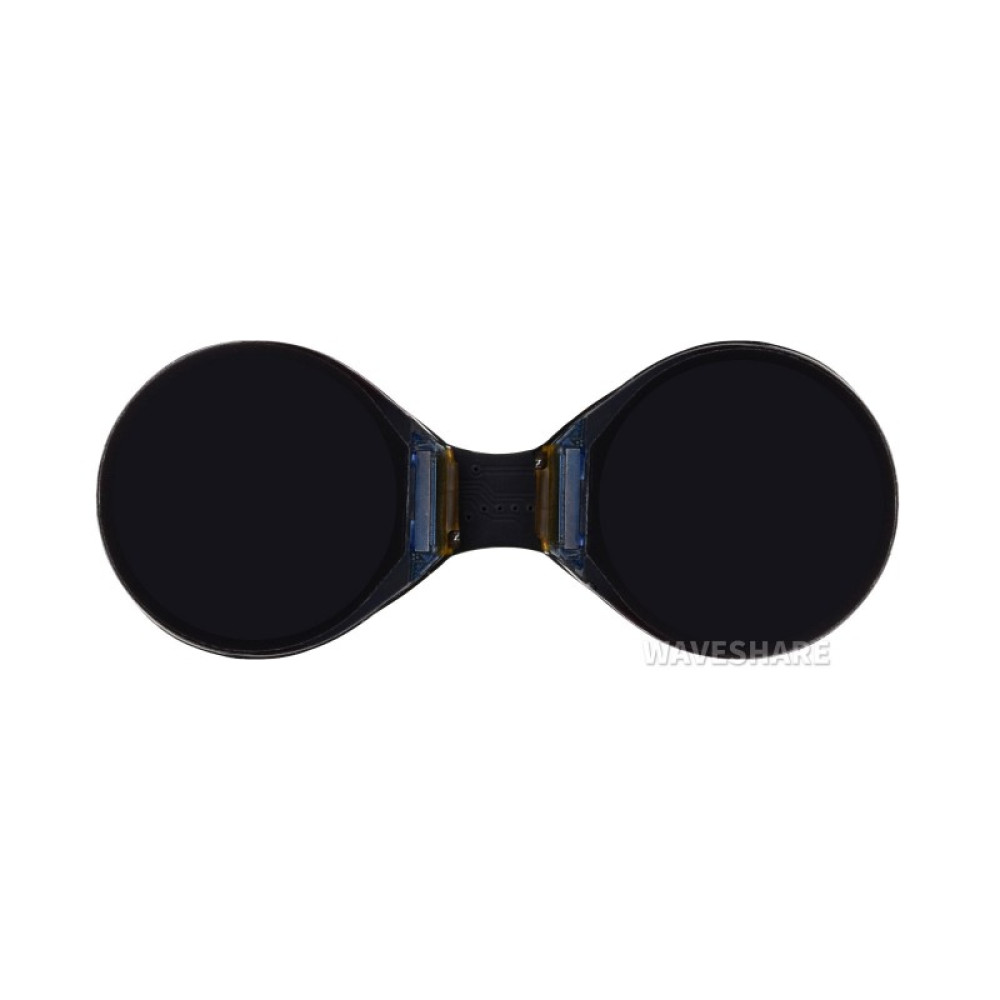

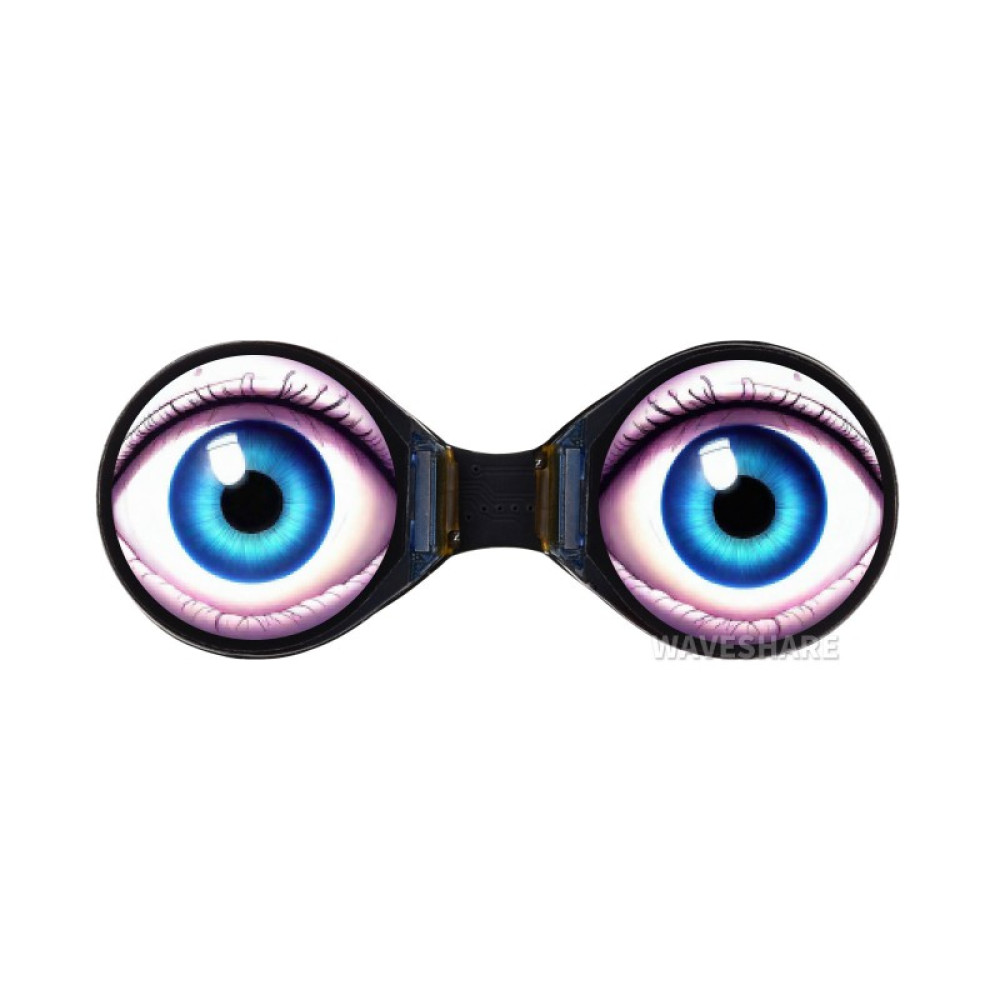

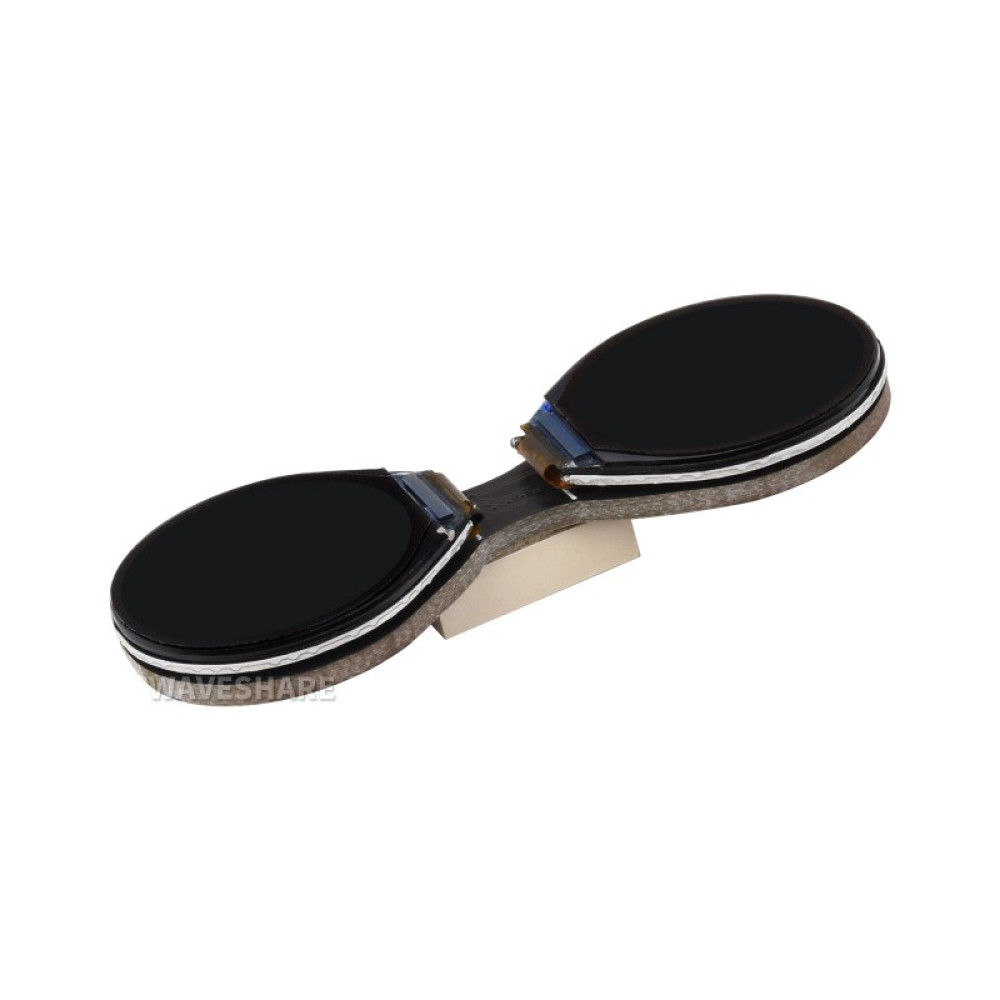

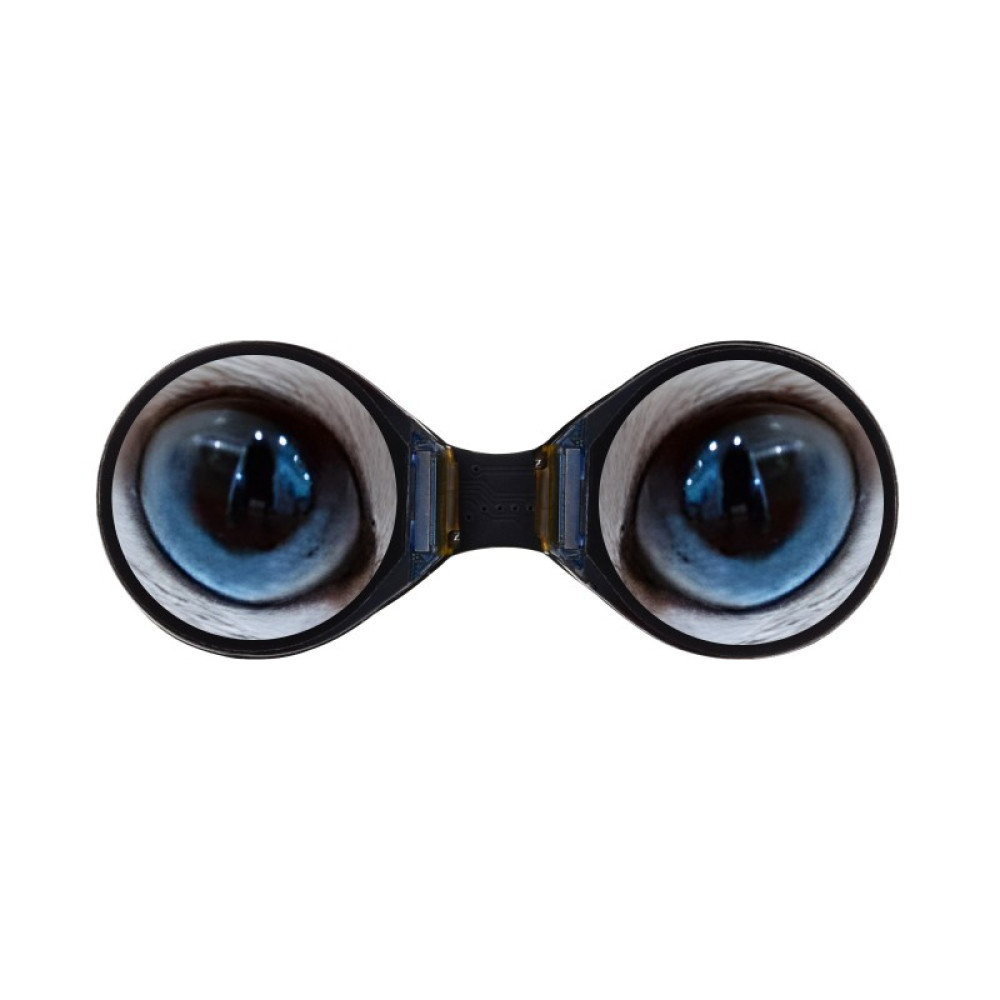

- The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle
- 160×160 resolution, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino
Specifications
| Operating voltage | 3.3V / 5V | Resolution | 160 × 160 pixels |
|---|---|---|---|
| Communication Interface | SPI | Display size | 18 × 18 (mm) |
| Display Panel | IPS | Pixel pitch | 37.5 × 112.5 (μm) |

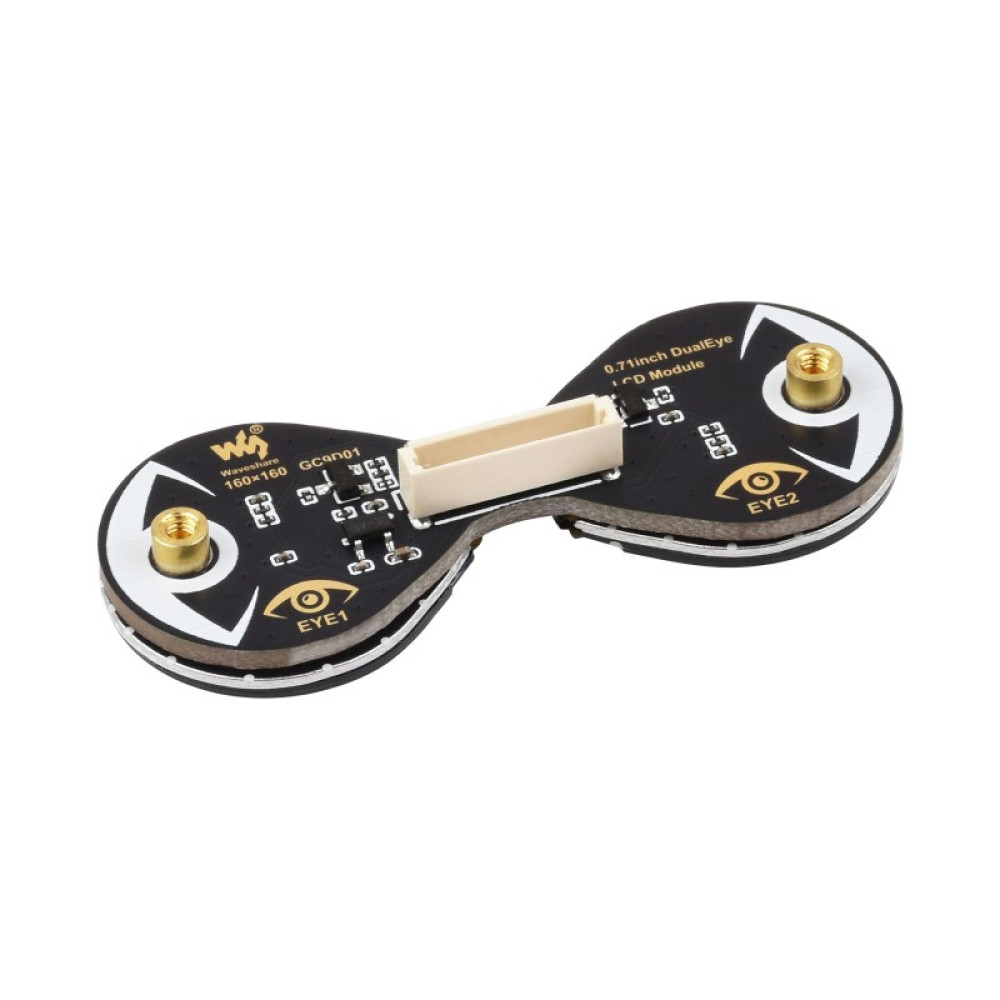

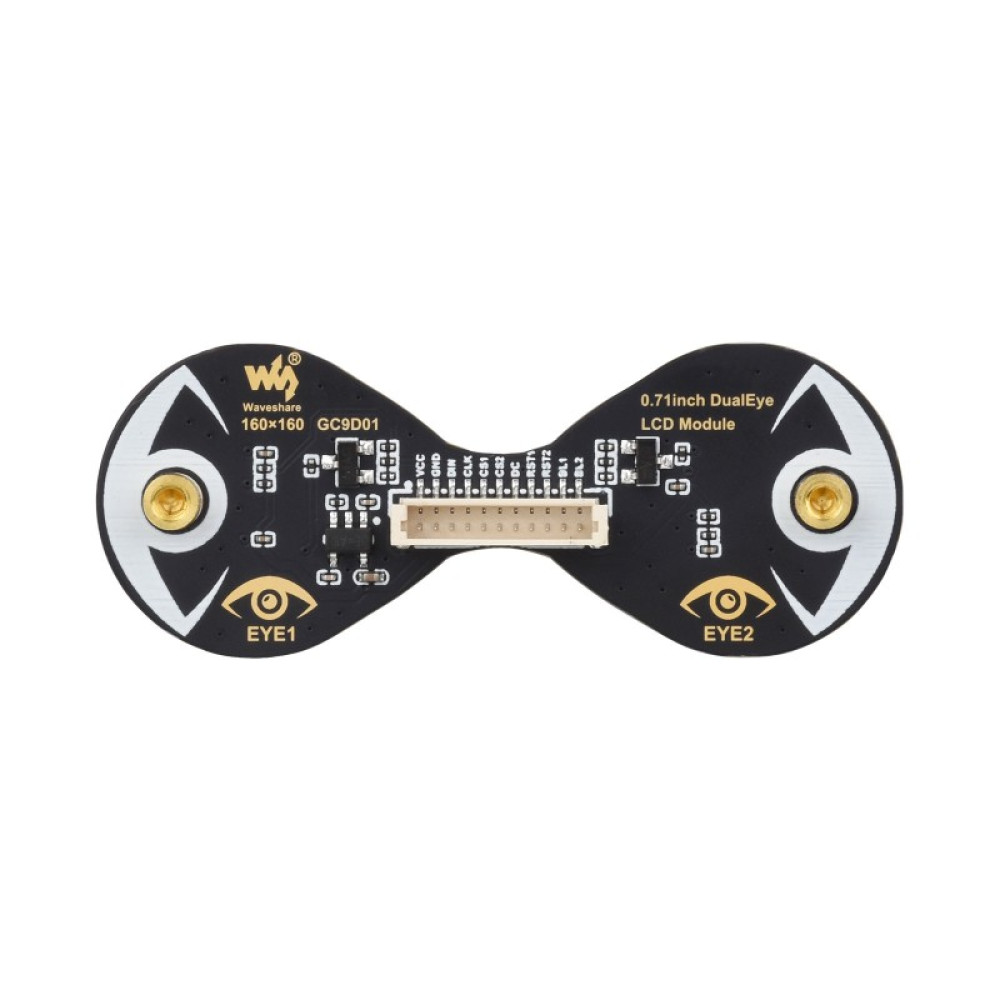

| Driver | GC9D01 | Dimensions | 20.00×51.00 (mm) |
Controlled via SPI Bus
supports controller boards like ESP32 / Arduino
usage example
* for reference only, please refer to the Package Content for detailed part list
Outline dimensions
