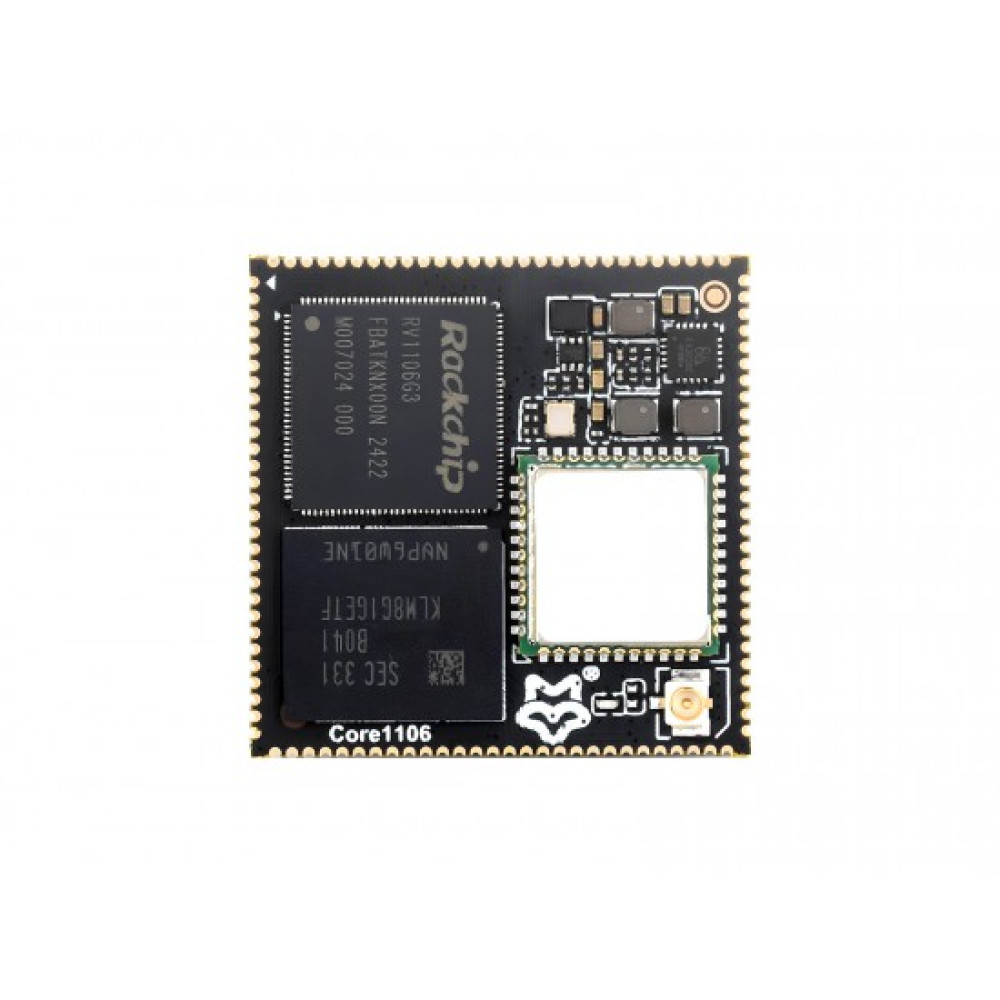

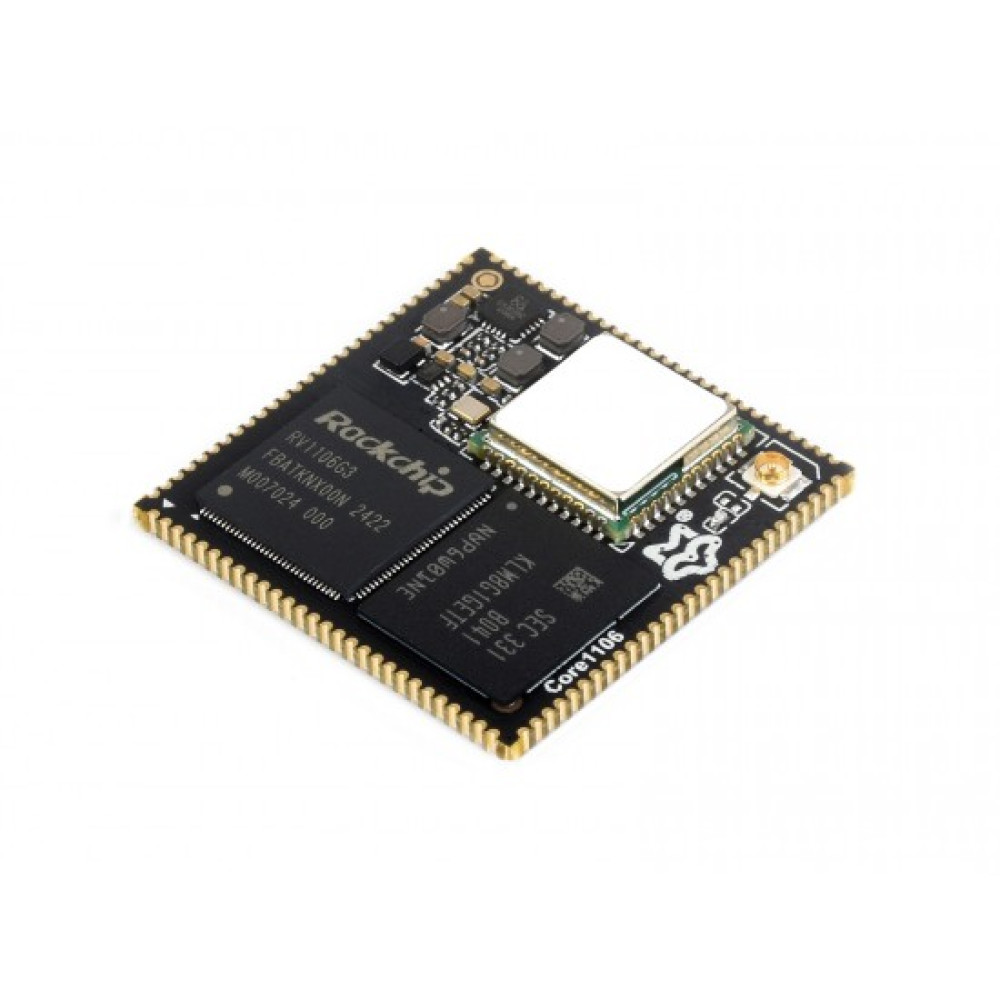

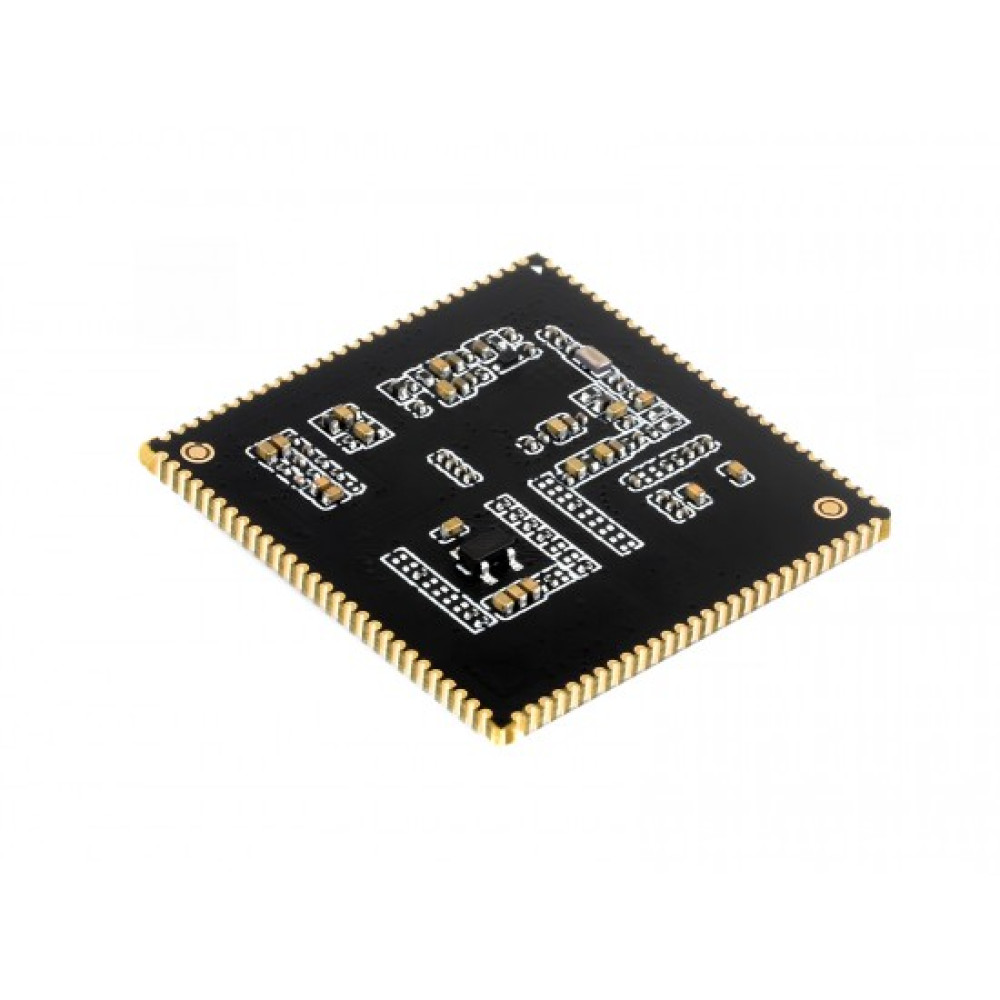

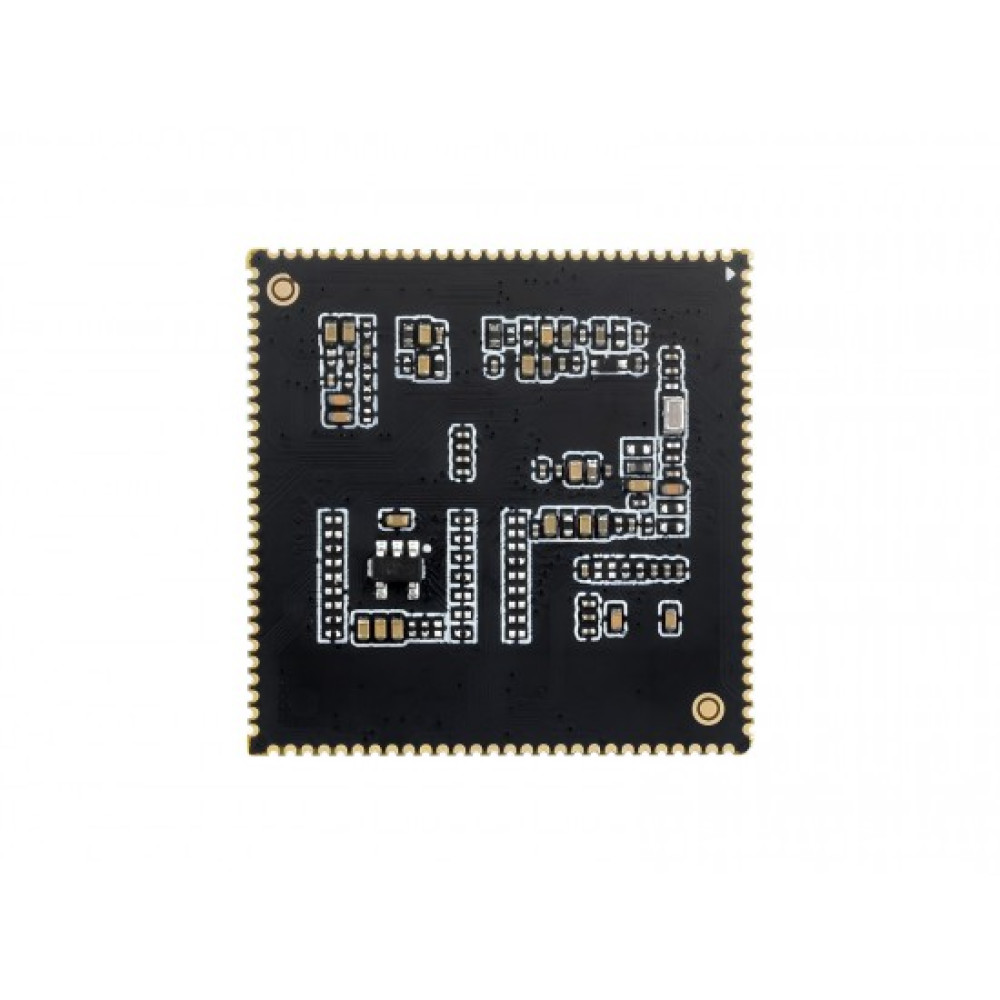

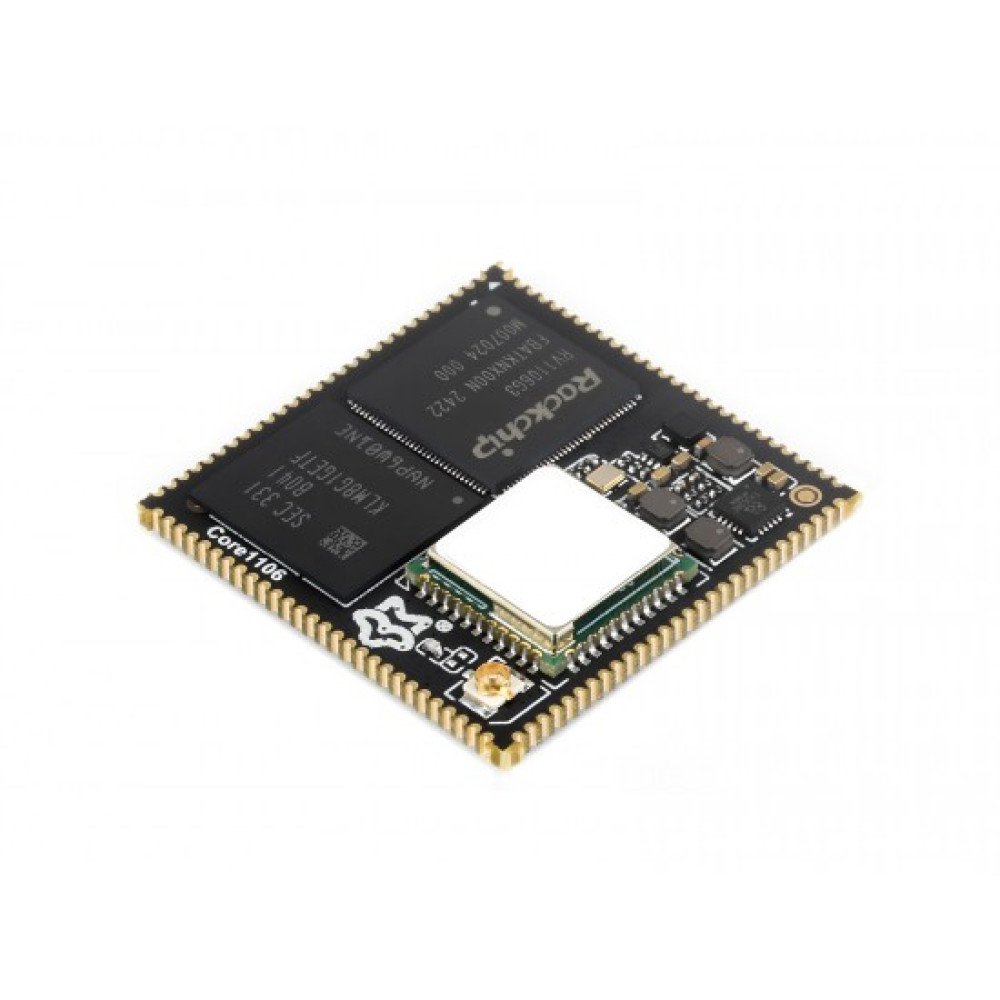

Core1106
Based on the Rockchip RV1106 chip
The Core1106 is a core board based on the Rockchip RV1106 series chips, featuring high performance and high expandability, provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle.
Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc. which is suitable for a variety of application scenarios. Optional for wireless module, with two core options of RV1106G2 and RV1106G3 to meet different needs.
Highly integrated and powerful performance
Integrates CPU, NPU, ISP and other processors
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
- Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space
- Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

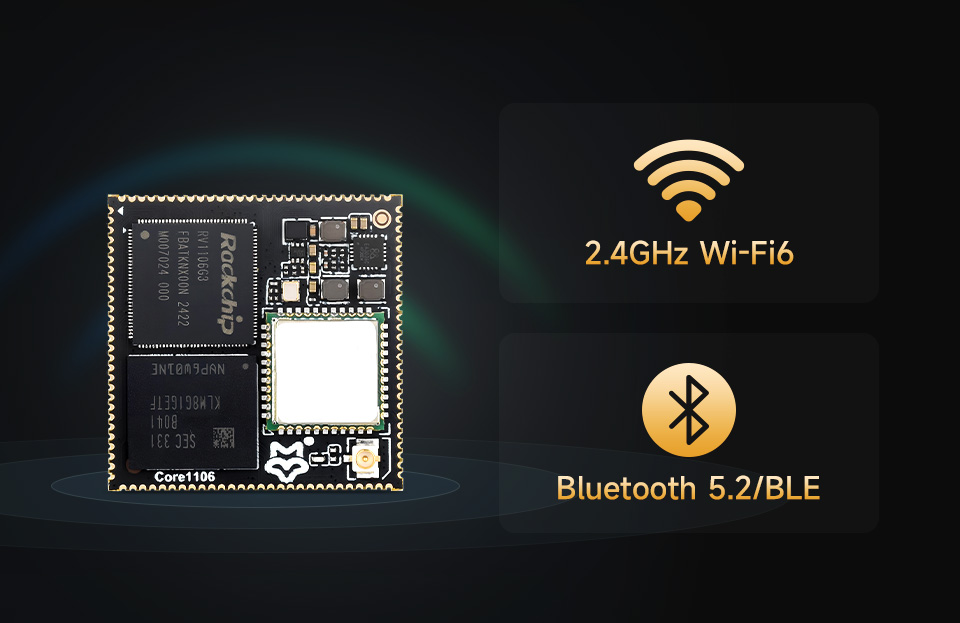

WiFi 6 / Bluetooth module
Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission
* the WiFi 6 / Bluetooth module is optional.

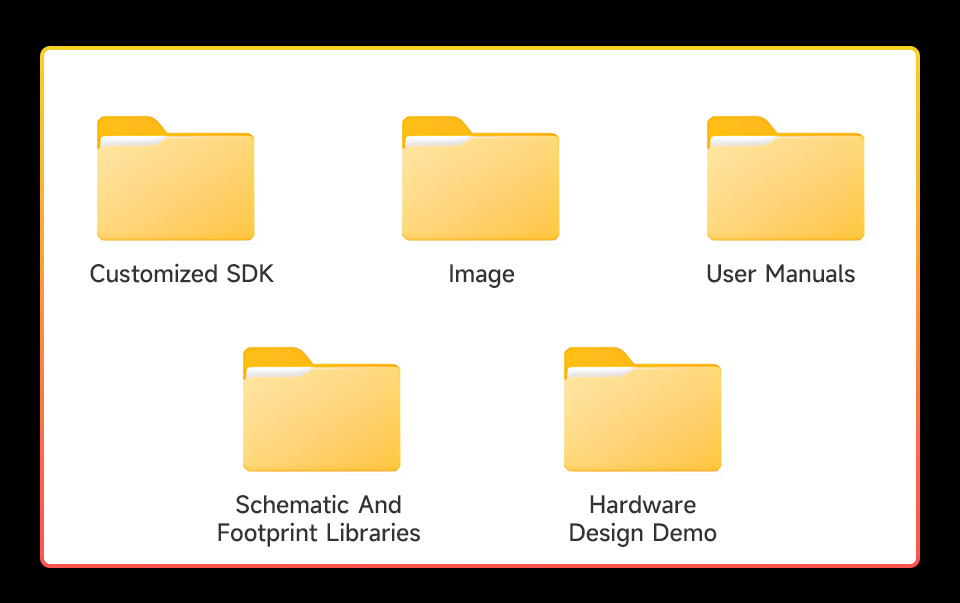

Complete software and hardware resources and an active community help secondary development
What's On Board
- RV1106G3 / RV1106G2
Vision processor SoC with built-in ARM Cortex-A7 core
- PMIC
3-ch power management chip
- 8GB eMMC
- WIFI/Bluetooth module
2.4G WiFi 6; BT5.2/BLE Bluetooth module (for wireless version only)
- Antenna connector
IPEX 1.0 connector (for wireless version only)
Parameter comparison
| Model |
Core11060208 |
Core11061208 |
Core11060408 |
Core11061408 |
| CPU |
RV1106G2 |
RV1106G3 |
| Processor |
Cortex A7 @1.2GHz |
| NPU |
0.5TOPS, supports int4, int8, int16 |
1TOPS, supports int4, int8, int16 |
| ISP |
Supports input 5M@30fps |
| Video encoding |
Hardware encoding, supports MJPEG, H264, H265 |
| Memory |
128MB DDR3L |
256MB DDR3L |
| Display interface |
Parallel RGB 18-bit × 1 |
| Camera interface |
MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1 |
| Microphone |
Analog differential MIC interface × 2 |
| Audio output |
LINEOUT × 1 |
| USB |
USB 2.0 Host/Device |
| WIFI/Bluetooth |
/ |
2.4 GHz WIFI 6 and Bluetooth 5.2/BLE |
/ |
2.4 GHz WIFI 6 and Bluetooth 5.2/BLE |
| Ethernet port |
10/100M Ethernet controller and embedded PHY |
| Default storage |
eMMC5.1 (8GB) |
| Other resources |
I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12 |
| Dimensions |
30 × 30 (mm) |
| Castellated holes |
112 Pin |
* Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.

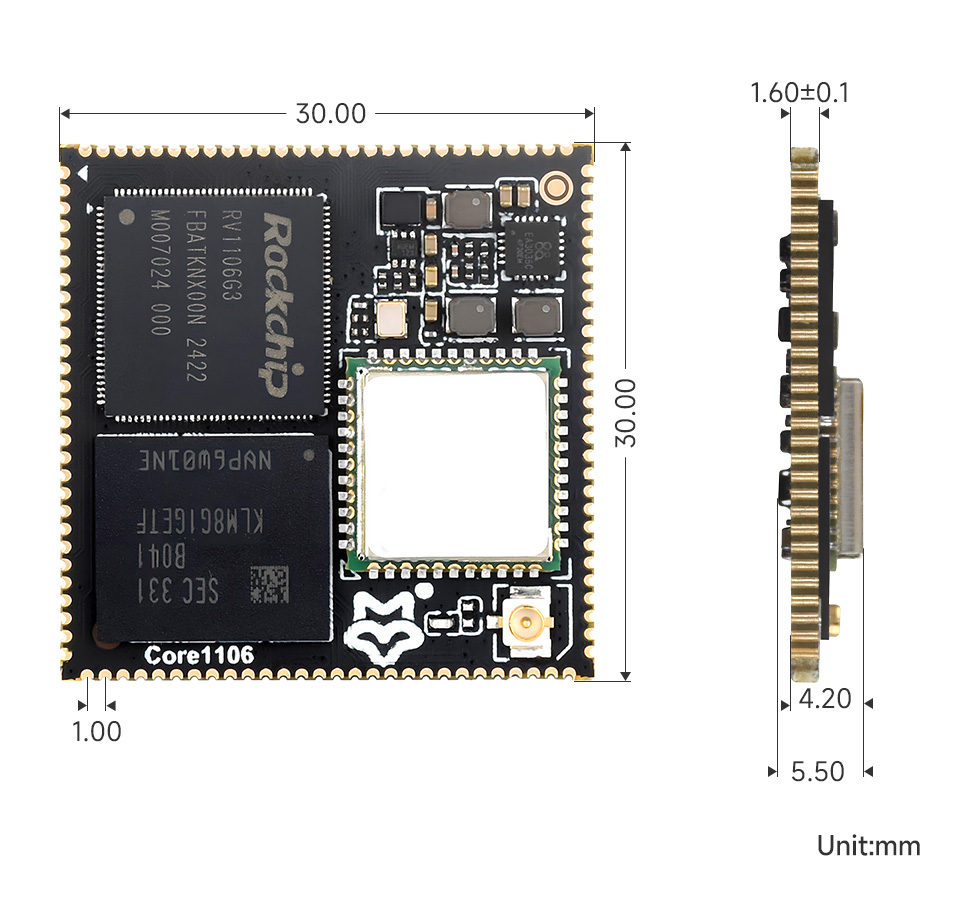

outline dimensions
