RP2350-Touch-AMOLED-1.8
Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip
RP2350-Touch-AMOLED-1.8
Standard version, without Lithium battery
Features
RP2350-Touch-AMOLED-1.8 is a high-performance, highly integrated MCU board designed by Waveshare. It features a compact size with an onboard 1.8inch AMOLED capacitive touch display, power management chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec chip and so on, making it easy to develop and integrate into products quickly.
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB onboard Flash memory
- Type-C connector for easier use
- Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color
- Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively
- Lithium battery recharge/discharge header, suitable for mobile applications
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 5 × multi-function GPIO pins
- 2 × I2C, 1 × UART, 1 × 12-bit ADC, 5 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
AMOLED parameters
| Display Panel |
AMOLED |
Display Size |
1.8 inch |
| Resolution |
368 × 448 pixels |
Display Colors |
16.7M |
| Brightness |
350 cd/㎡ |
Contrast Ratio |
100000:1 |
| Communication Interface |
QSPI |
Driver IC |
SH8601 |
| Touch |
Supported |
Touch IC |
FT3168 |
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing battery* inside the case for independent operation.

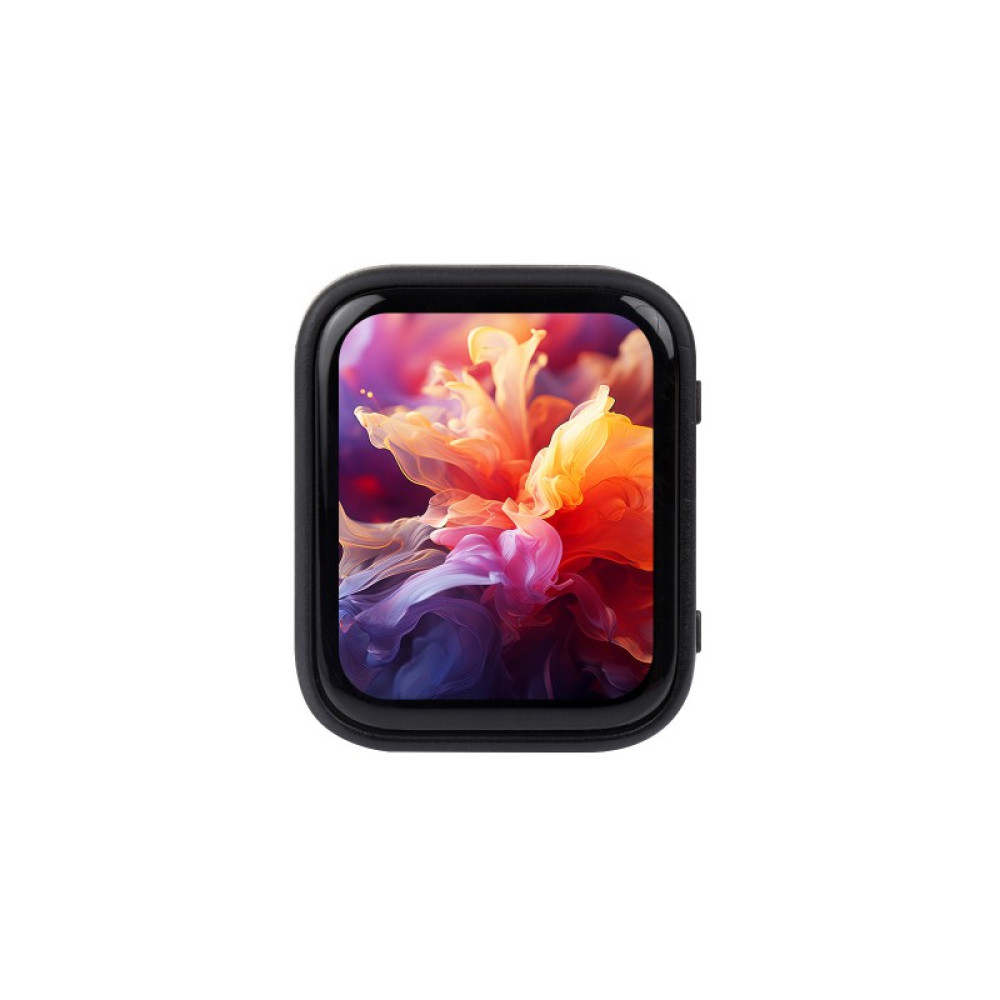

Adopts AMOLED screen
The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image
178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
dual-core, dual-architecture
The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Onboard audio codec
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports Offline Speech recognition and AI Speech Interaction
Allows access to online large model platforms to support more AI application scenarios
Supports ESP-IDF, Arduino
Comprehensive SDK, dev resources, tutorials to help you easily get started
Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

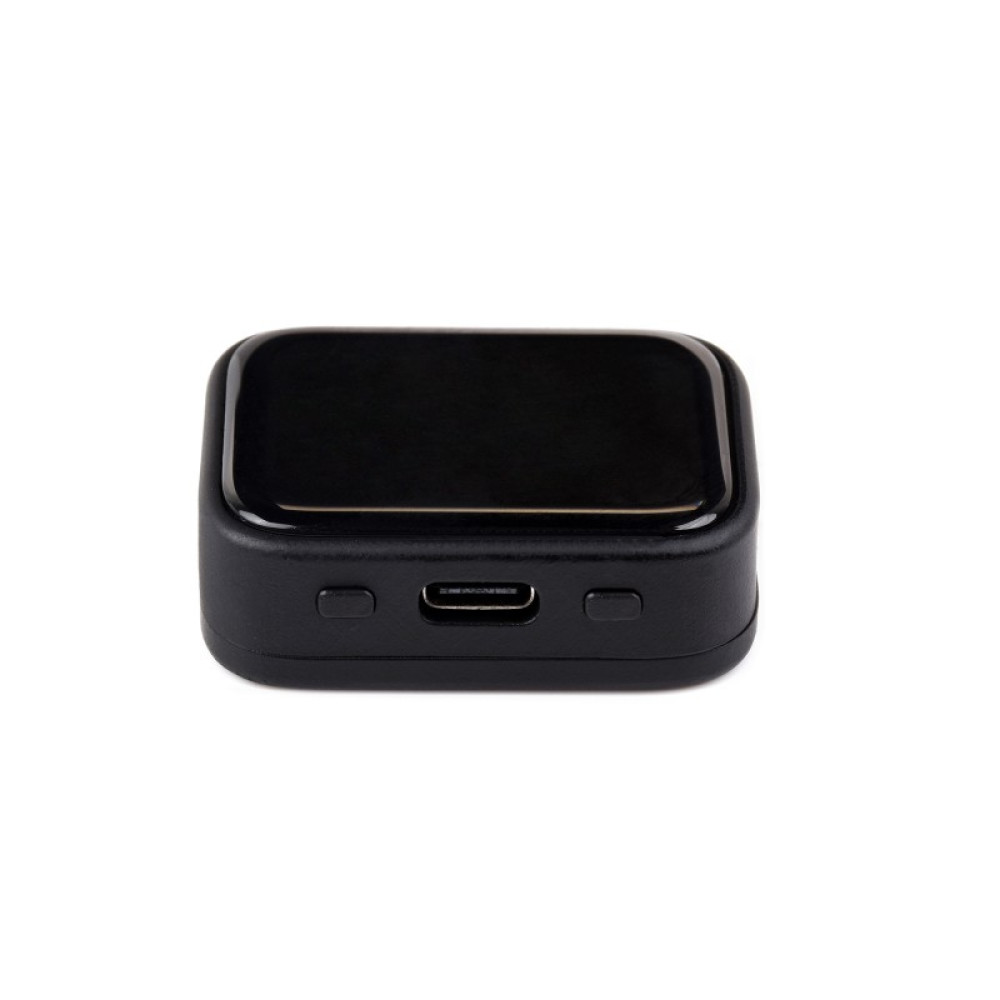

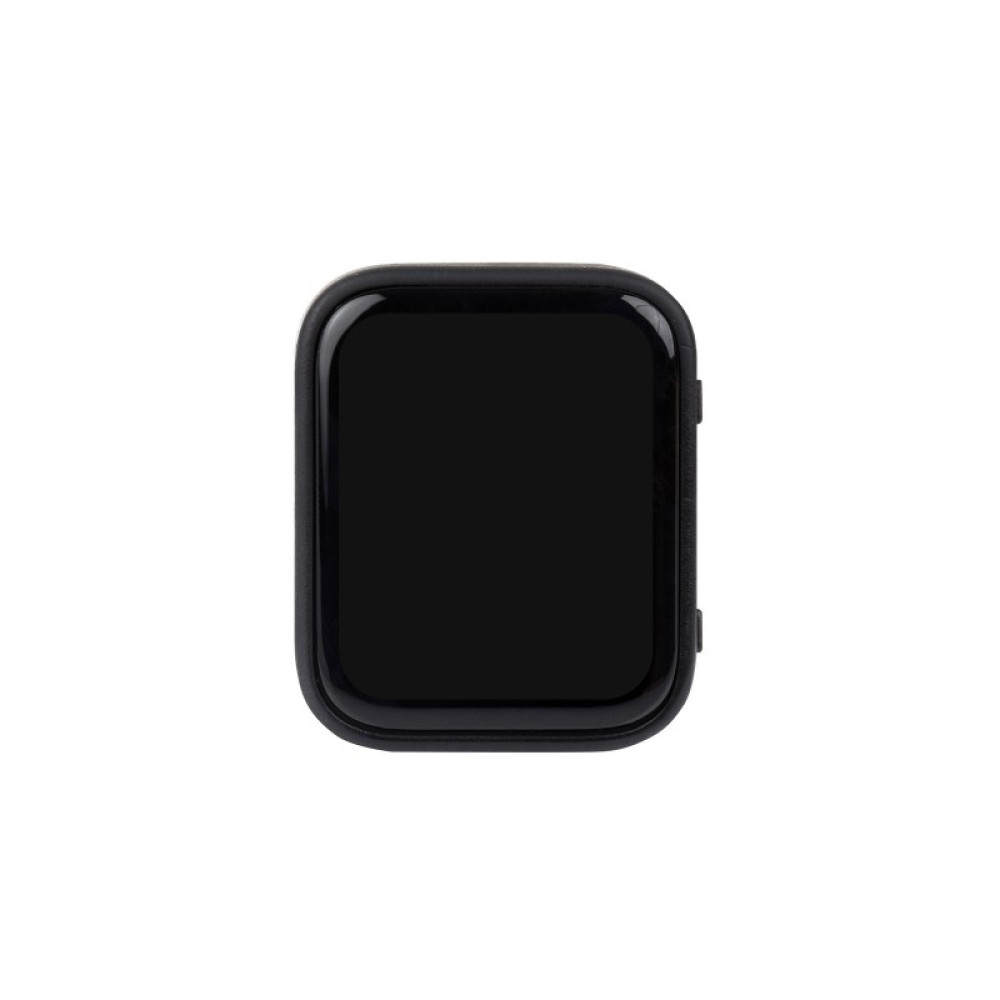

Dedicated black case, unique design
with removable back cover for easy embedded into the projects and DIY design

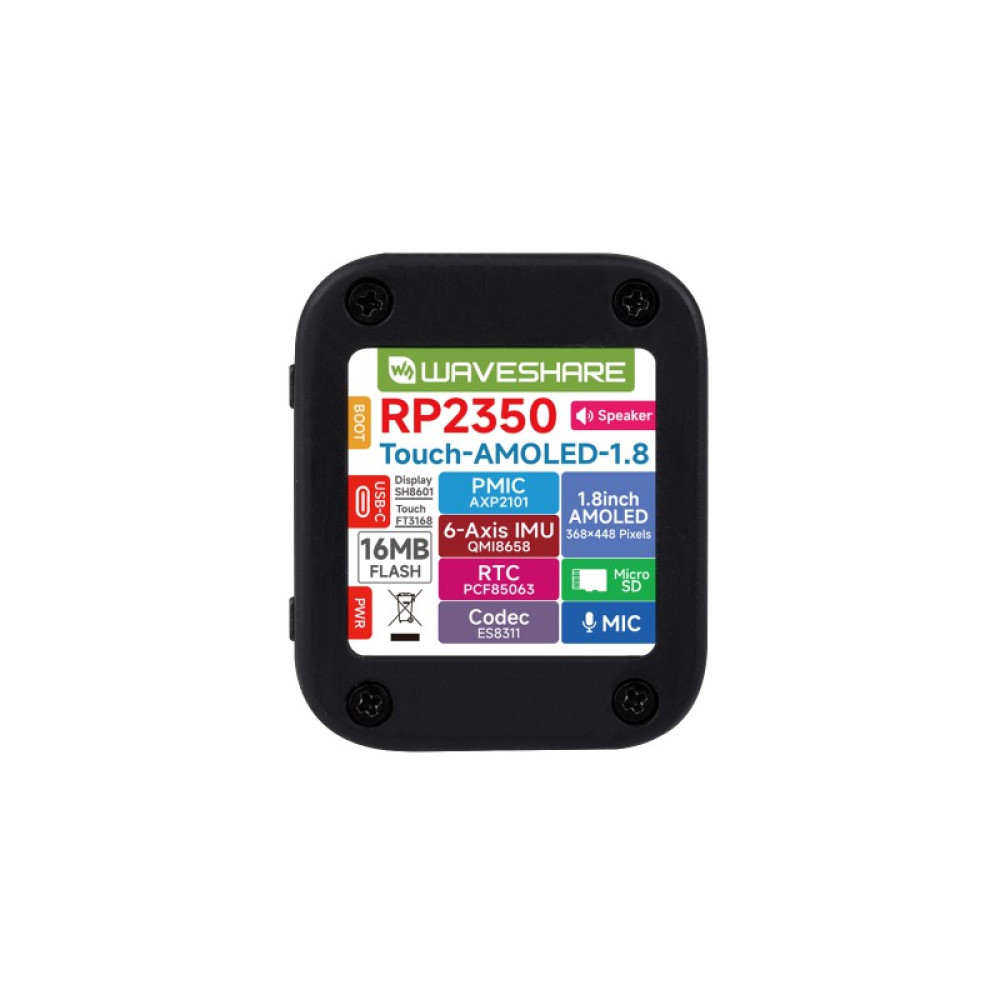

What's On Board
- RP2350A Dual-core and dual-architecture design, up to 150 MHz operating frequency
- QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- PCF85063 RTC chip
- ES8311 Low power mono audio codec
- AXP2101 Highly integrated power management IC
- PWR button for system power supply ON/OFF, supports custom functions
- Type-C connector for programming, USB 1.1 with device and host support
- BOOT button for device startup and function debugging
- Speaker
- Backup battery pads for connecting backup battery, ensuring RTC function during the replacement of the main battery
- MX1.25 Lithium battery header MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 × 24 × 28 mm is recommended)
- Microphone

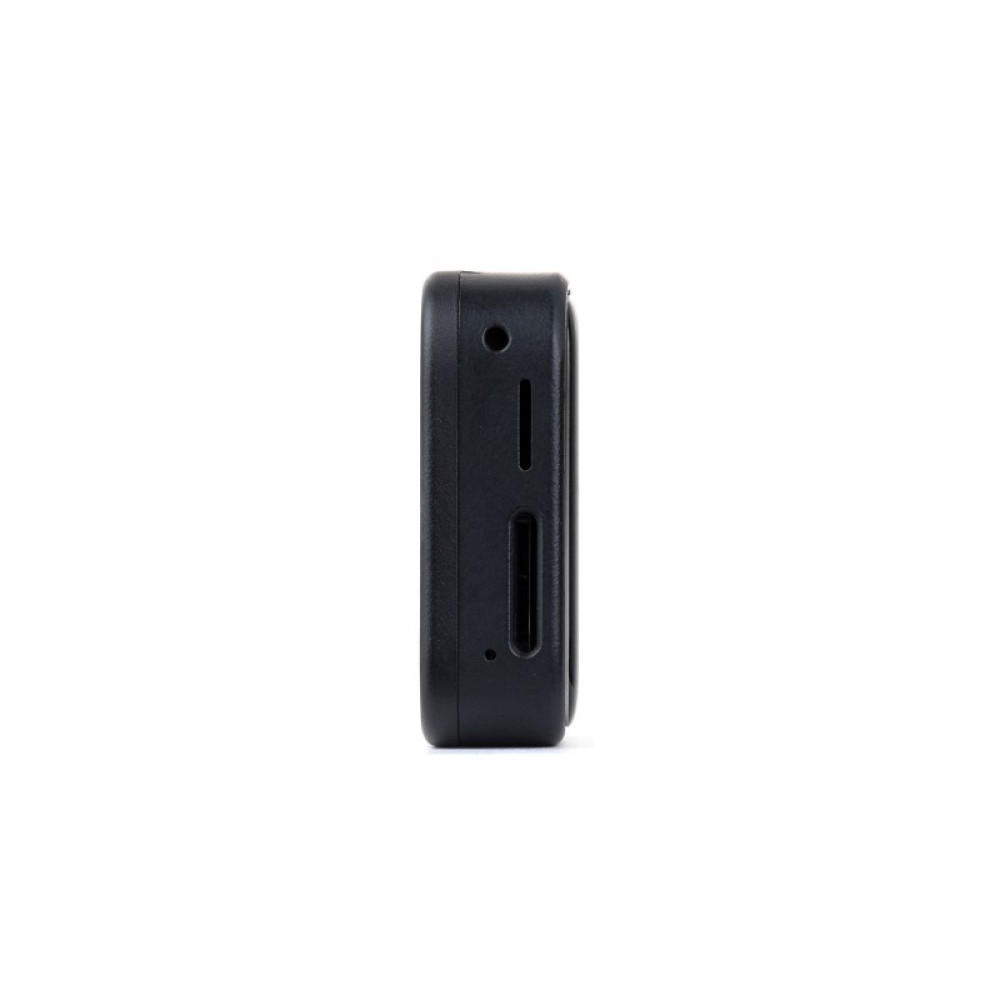

- TF card slot
- W25Q128JVSIQ 16MB NOR-Flash
- NS4150B Audio power amplifie
Pin Definition
outline dimensions
