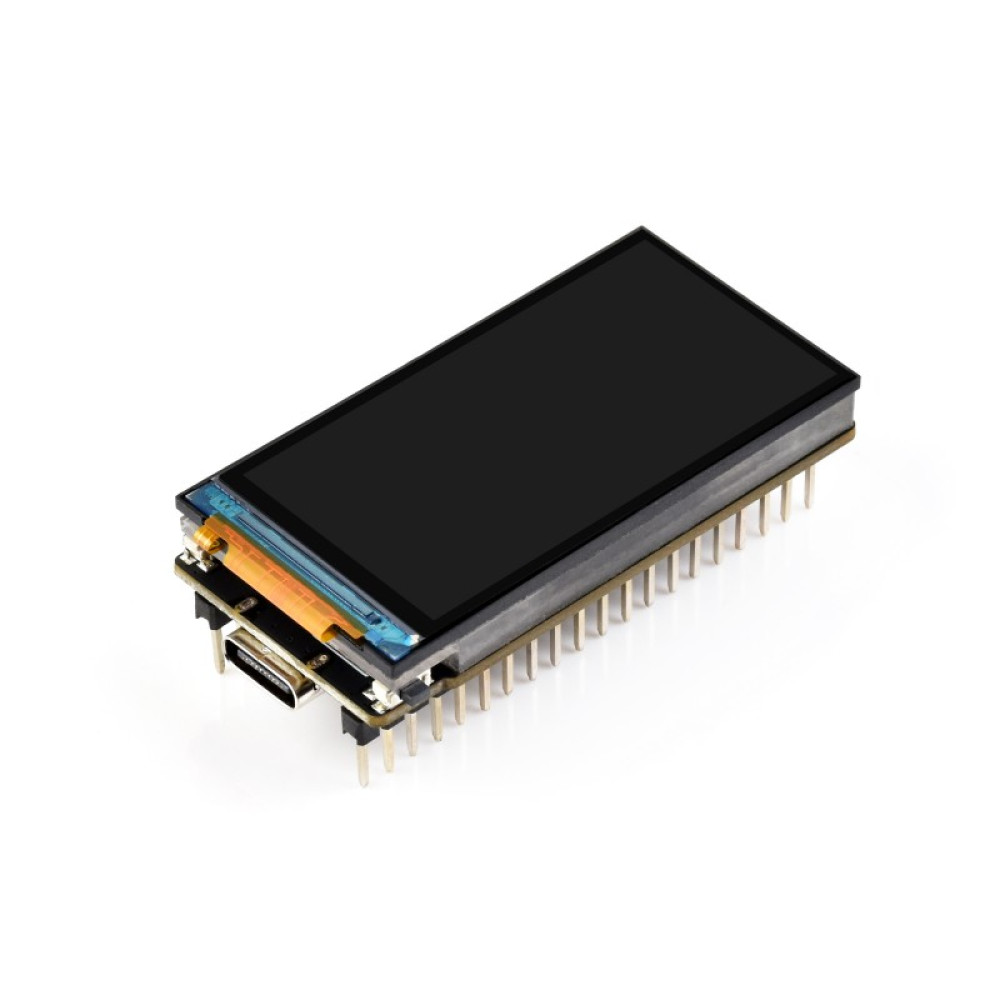

Микрокомпьютер ESP32-C6 160MHz, 1.9inch, 512KB SRAM, 8MB Flash, Wi-Fi 6, Bluetooth 5

170 × 320, Embedded with ST7789V2 Display Driver, Supports 90° Hardware Rotation



ESP32-C6-Touch-LCD-1.9
with touch control

This product adopts ESP32-C6FH8 chip with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 8MB Flash. Onboard 1.9inch LCD display which can smoothly run GUI programs such as LVGL. Onboard QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc. Compatible with Pico header, offering strong compatibility and expandability. It is suitable for the quick development of the HMI and other ESP32-C6 applications.

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
• Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Built-in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, integrates 8MB Flash

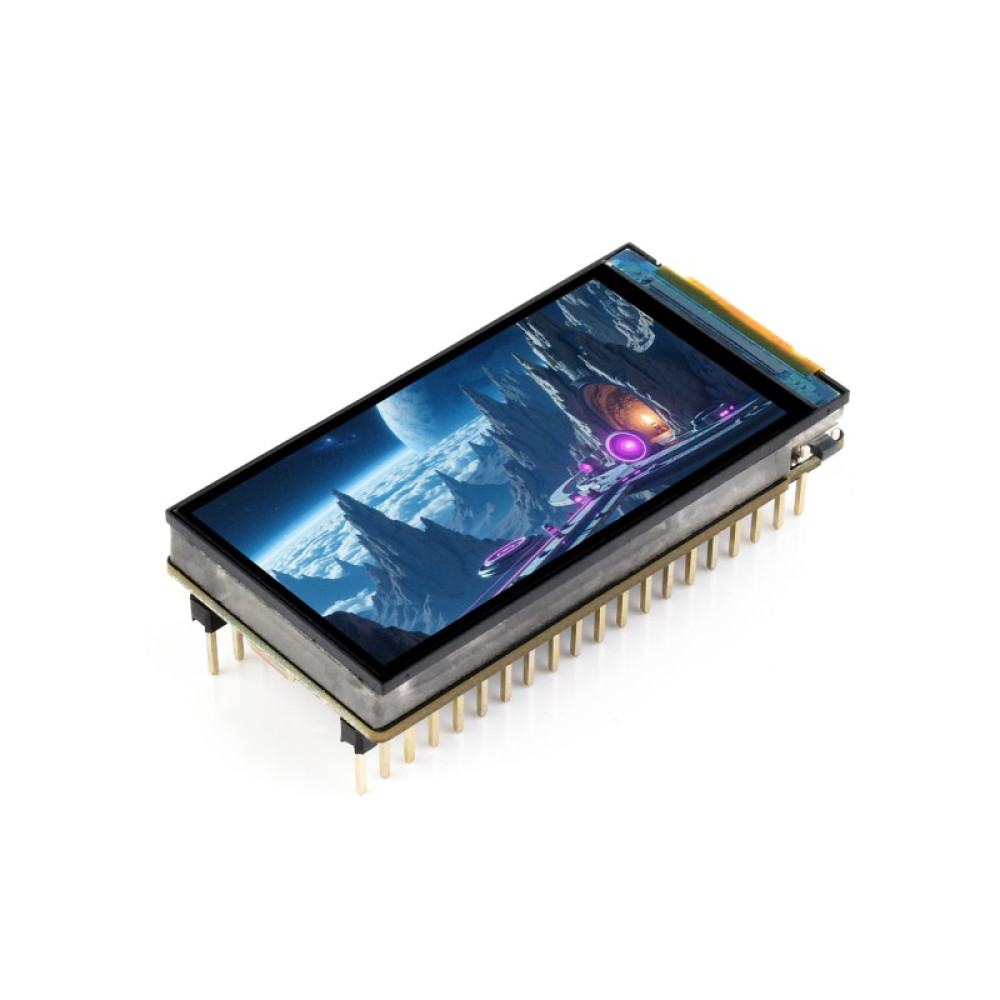

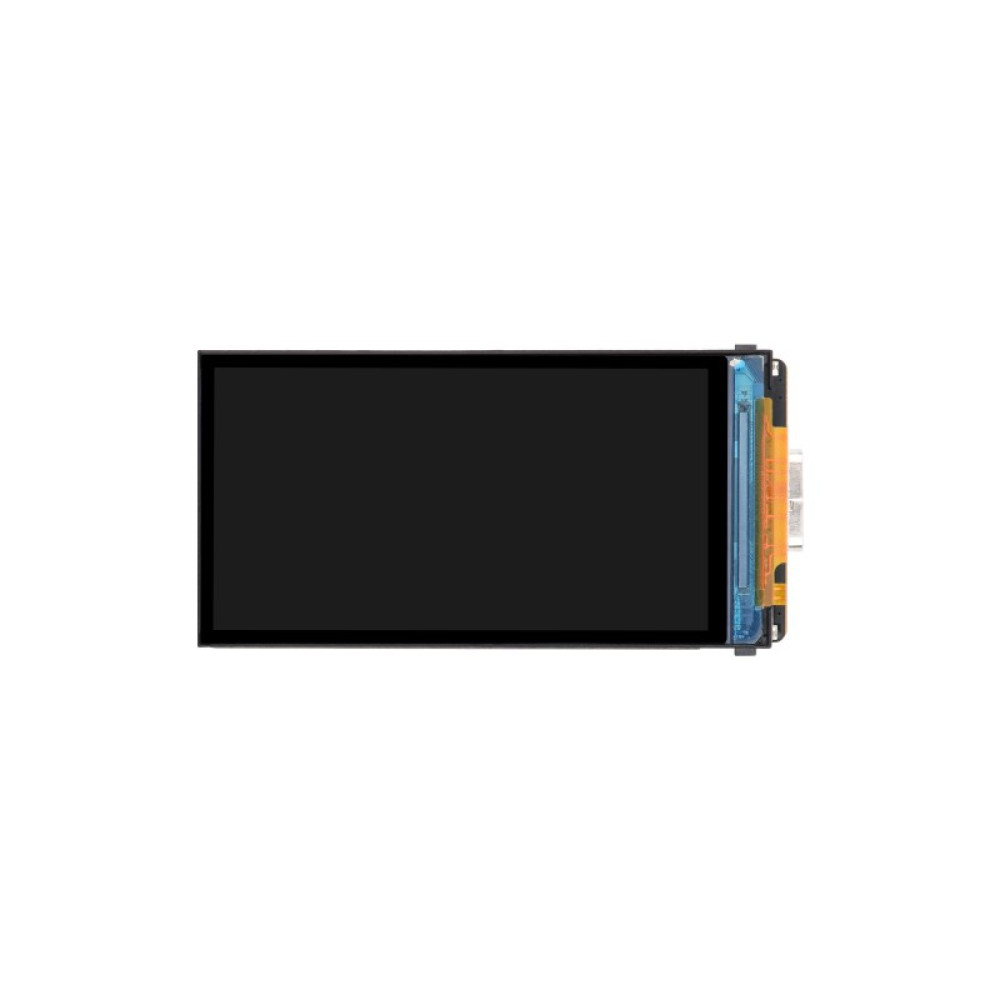

• Onboard 1.9inch LCD display, 170 × 320 resolution, 262K color, delivering clear and vivid color image display
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
• Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard TF card slot for external TF card storage of pictures or files
• Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

interface definition

Совместим с  Pico header, а так же может быть использован как Raspberry Pi Pico HATs

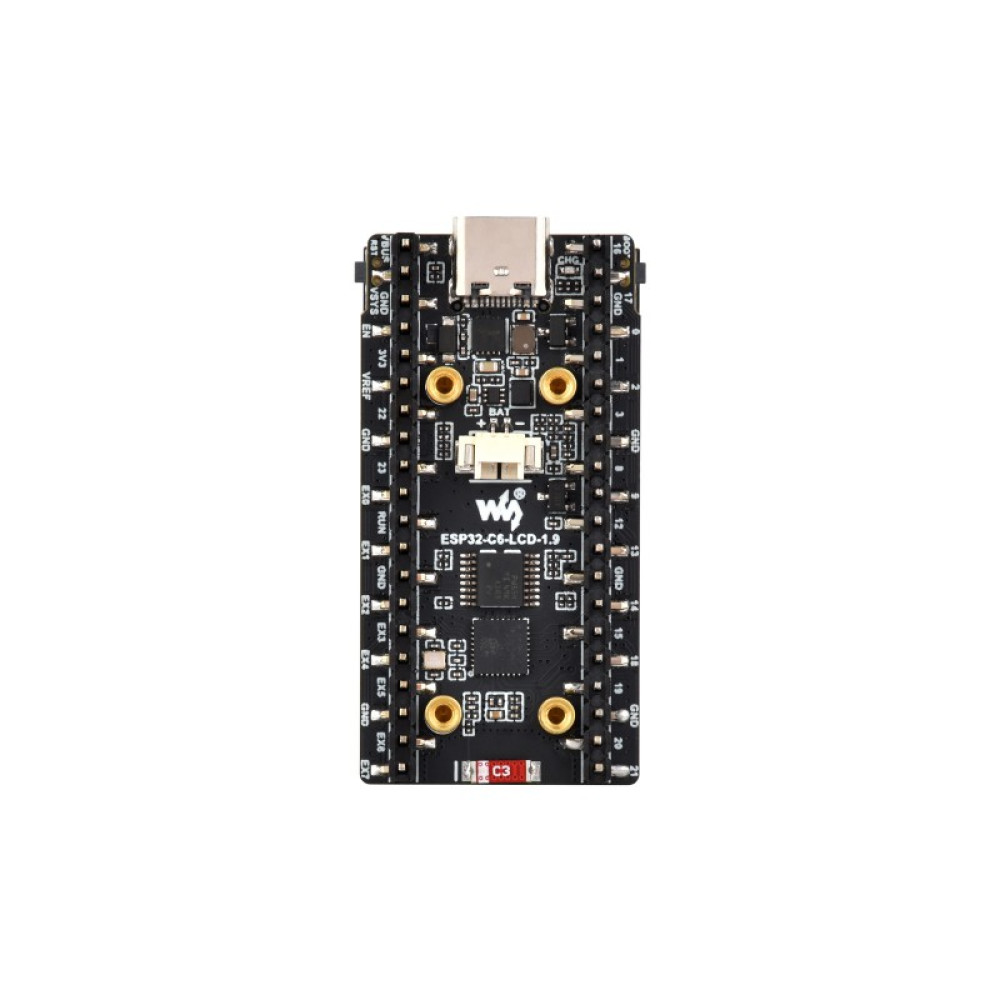

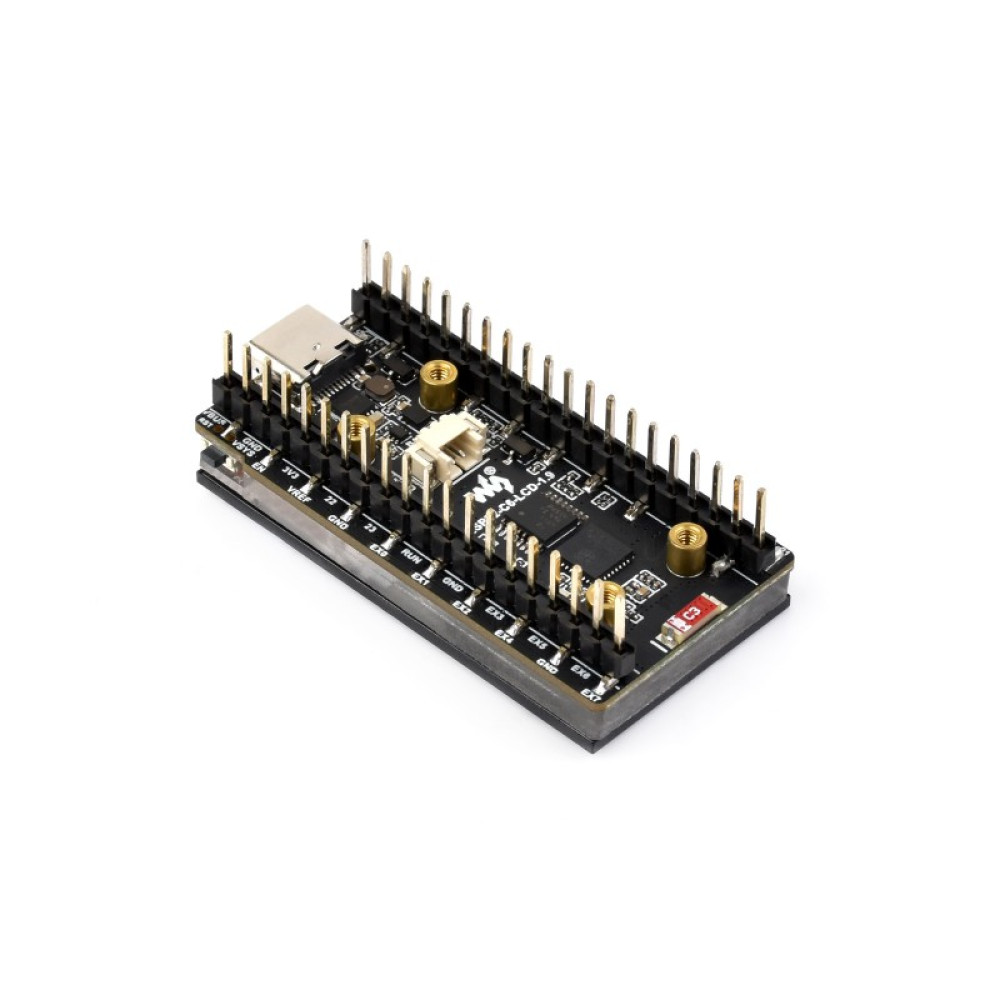

What's On Board

1. ESP32-C6FH8
   integrates 8MB Flash, up to 160MHz operating frequency
2. TCA9554
   8-ch GPIO expander chip, enhances IO flexibility
3. MX1.25 battery header
   MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
4. RESET button
5. USB Type-C port
   for power input and data transmission
6. TF card slot (on the back side)
   Supports TF card for extended storage
7. Charge indicator
   Lithium battery charge indicator, lights up when charging, off when fully charged
8. BOOT button
   for downloading program or entering boot mode
9. WS2812 RGB LED (for non-touch version only)
   for colorful lighting effects, on the back side of the PCB
10. QMI8658 sensor (on the back side)
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
11. IPEX1 connector (for touch version only)
    Switching to use external antenna via resoldering an onboard resistor
12. Onboard ceramic antenna
    Onboard antenna design for space saving and signal stability

Размеры:

Комплектация:

• Микрокомпьютер ESP32-C6 1.9
